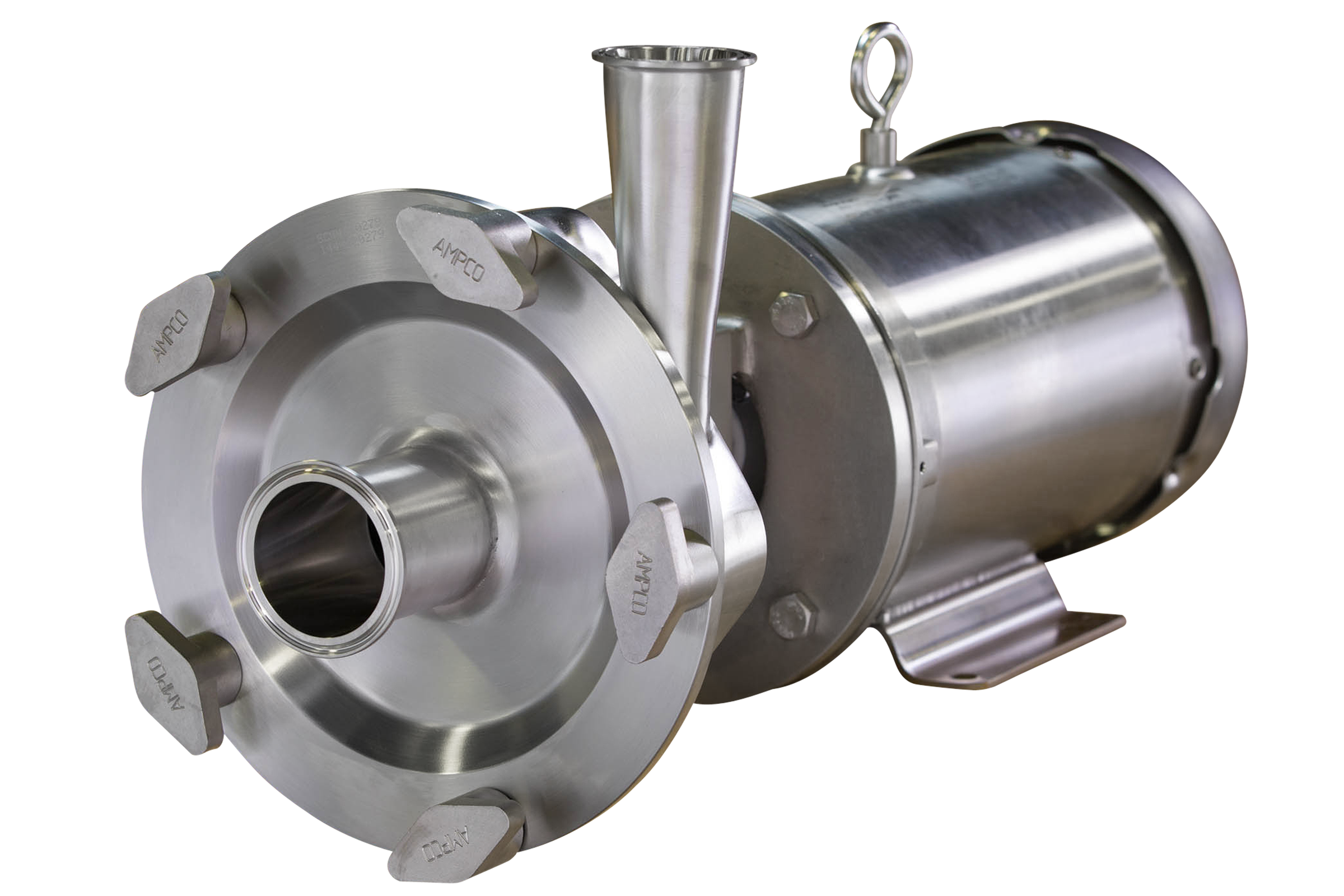

LC Series is the Proven
Single Seal Sanitary Pump

Ampco’s LC Series is a tried and true single mechanical seal design. This simplistic style centrifugal pump is one of the most commonly installed pumps in the world.

The LC Series is cast and machined from 316L stainless steel and offers a 304 stainless steel adapter – always standard.

Manufactured using heavy wall construction for durability, LC pumps are commonly used for gentle and efficient applications, such as beverage and dairy.

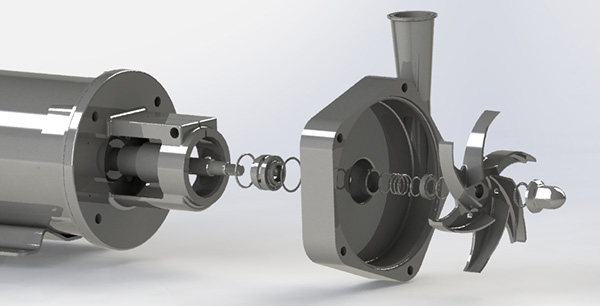

Ampco’s LC Series is dimensionally and hydraulically interchangeable with most competing brands. The internal seal design, along with the dynamically balanced impeller, allows the LC smooth quiet operation while extending seal longevity.

LC Series
Centrifugal Pump Features

• 316L Stainless Steel Heavy Wall Construction
• Cast and Machined
• 304 Stainless Steel Adapter
• Balanced Impellers
• 316L Stainless Steel Shaft

LC Series Performance Overview

Models:  15
Max Inlet Pressure:  150 PSI / 10 BAR
Max Flow Rate:  800 GPM / 182 Mᵌ/hr
Max Viscosity:  1,200 cP
Seal Specifications:  3 Seal Options
