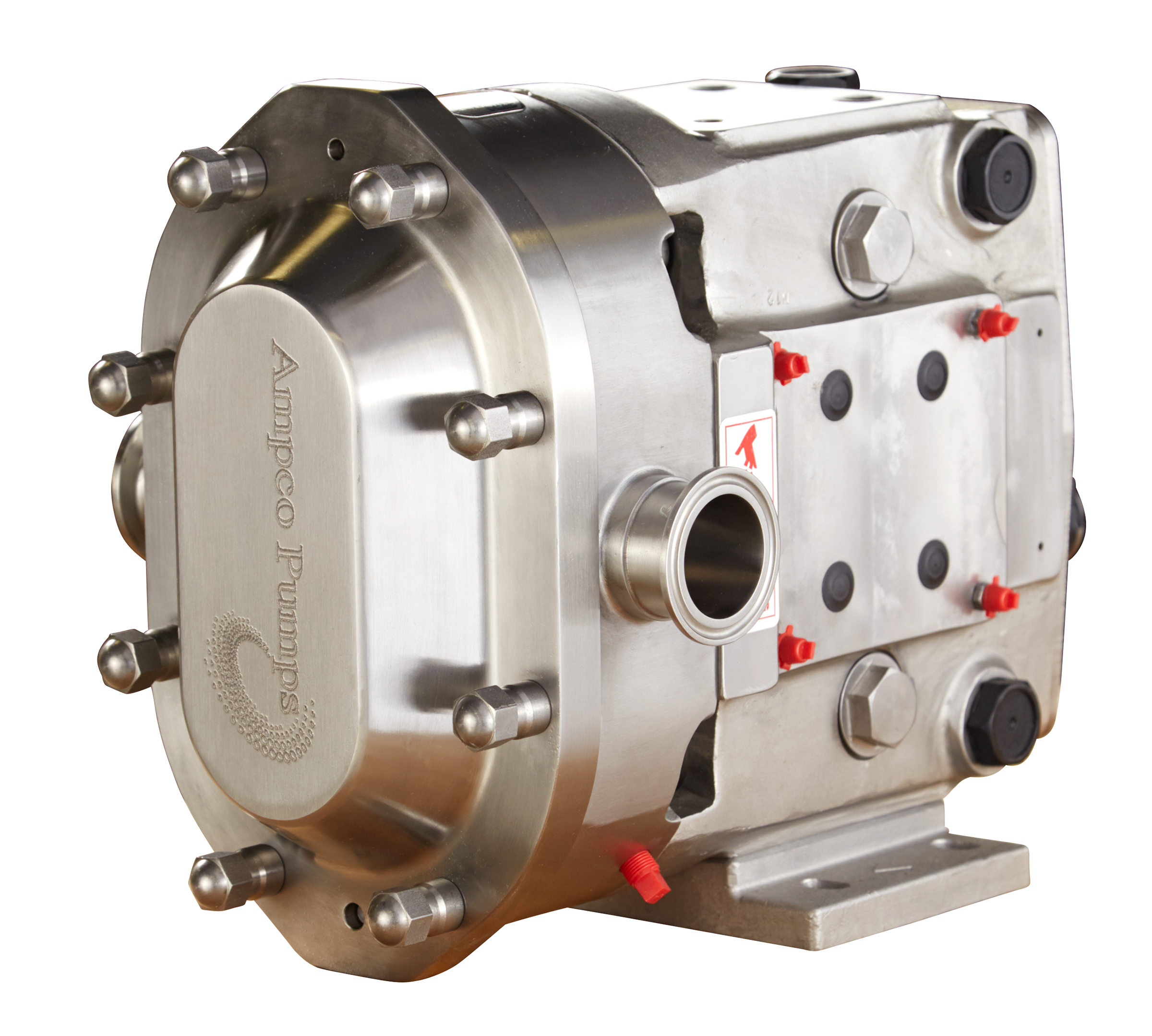

ZP2 Positive Displacement Pumps Withstand Higher Pressures

The ZP2 Series with its stainless steel gearcase, like all Ampco positive displacement pumps, is built for CIP-ability with enclosed rotor nuts.

It is designed to withstand higher pressures with its larger 17-4ph stainless steel shafts. In fact, the ZP2 is capable of withstanding pressures of up to 500 PSI and is 3A Certified.

ZP2 Series
Circumferential Piston Pump Features

• 304 Stainless Steel Gearcase
• Alloy 88 Non-Galling Rotors
• Stainless Steel Bearing Retainers
• 17-4ph Shafts – more than 3 times the yield strength of 316
• Helical Gears
• 4-Way Mounting
• Multiple Threaded Grease Zerks
• Gasketed Stainless Steel Clean-Out Plugs
• Stainless Steel Splash Plate

ZP2 Series Performance Overview

Models:  16
Max. Discharge Pressure:  500 PSI / 34 BAR
Max Flow Rate:  452 GPM / 103 m³/hr
Max Viscosity:  1,000,000 cP
Seal Specifications:  2 Seal Options
