DEDB 100 BG (DN 10 - DN 40)
DEDB 100 BG (DN 10 - DN 40)
Operating Limits
Pressure : ≤ 10 bar
Temperature : ≤ 120˚C
Rotation: 750 Rpm

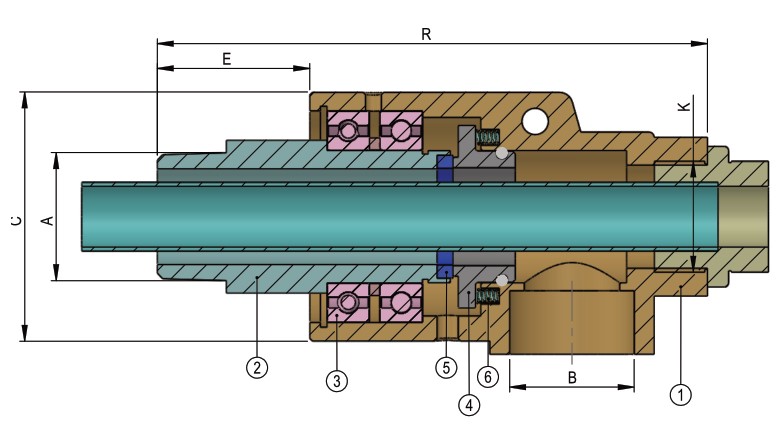

Parts
1. Body
2. Rotor
3. Bearing
4. Stationary Ring
5. Rotary Ring
6. Spring
