DEDB 100 BG (DN 50 - DN 100)
DEDB 100 BG (DN 50 - DN 100)
Operating Limits
Pressure : ≤ 10 bar
Temperature : ≤ 120˚C
Rotation: 750 Rpm

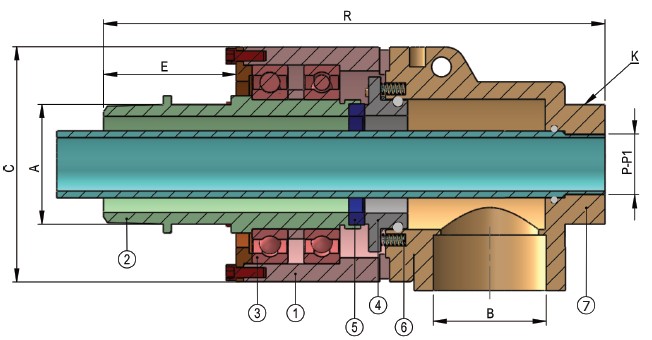

Parts
1. Upper Body
2. Rotary Pipe
3. Bearing
4. Stationary Ring
5. Rotary Ring
6. Spring
7. Lower Body
