DEDB 200-250

Rotary Joint for Continuous Steel Casting

Operating Limits
Pressure : ≤ 10 bar
Temperature : ≤ 120˚C
Rotation: 100 Rpm

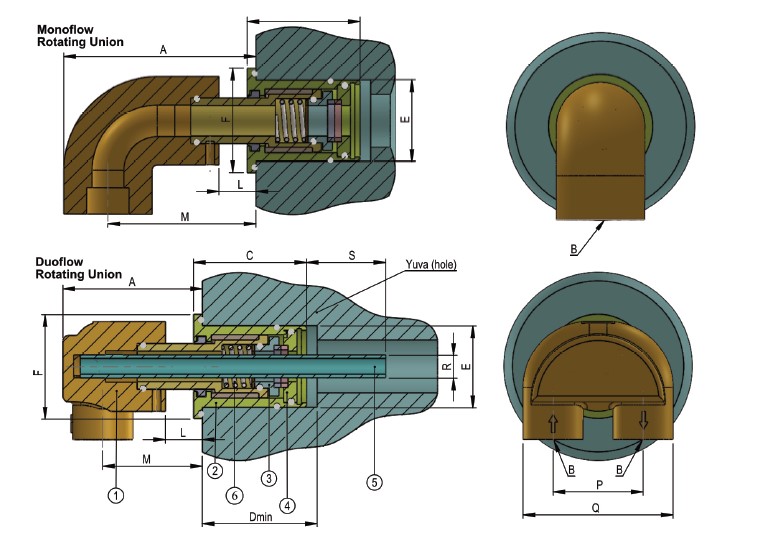

1. Pipe Bend
2. Rotary Body
3. Stationary Ring
4. Rotary Ring
5. Supply Pipe
6. Spring
