DEDB 300/500 ZG

Operating Limits
Pressure : ≤ 17 bar
Temperature : ≤ 200˚C
Rotation: 750 Rpm

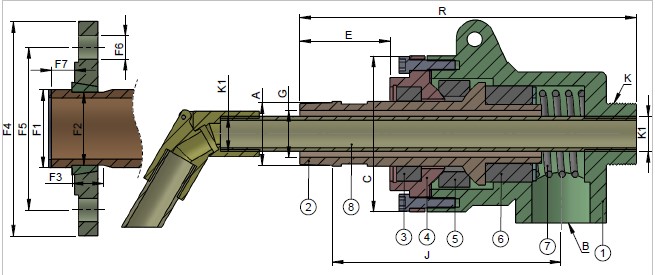

Parts

1. Body
2. Rotary Pipe
3. Sealing Carbon
4. Cap
5. Sealing Carbon
6. Sealing Carbon
7. Spring
8. Supply Pipe
