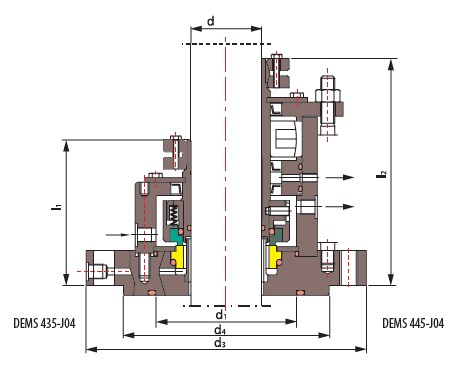

DEMS 435-J04 / 445-J04

Operating Limits
Pressure: ≤0.6MPa
Speed: ≤1000rpm
Temperature: -60˚C~+260˚C

Rotary Ring(SiC/Carbon/TC)
Stationary Ring(SiC/Ceramic/TC)
Secondary Seal(VITON/Encapsulated Ring/PTFE)
Other Parts (SUS304/SUS316/Titanium/Hastelloy-C)
