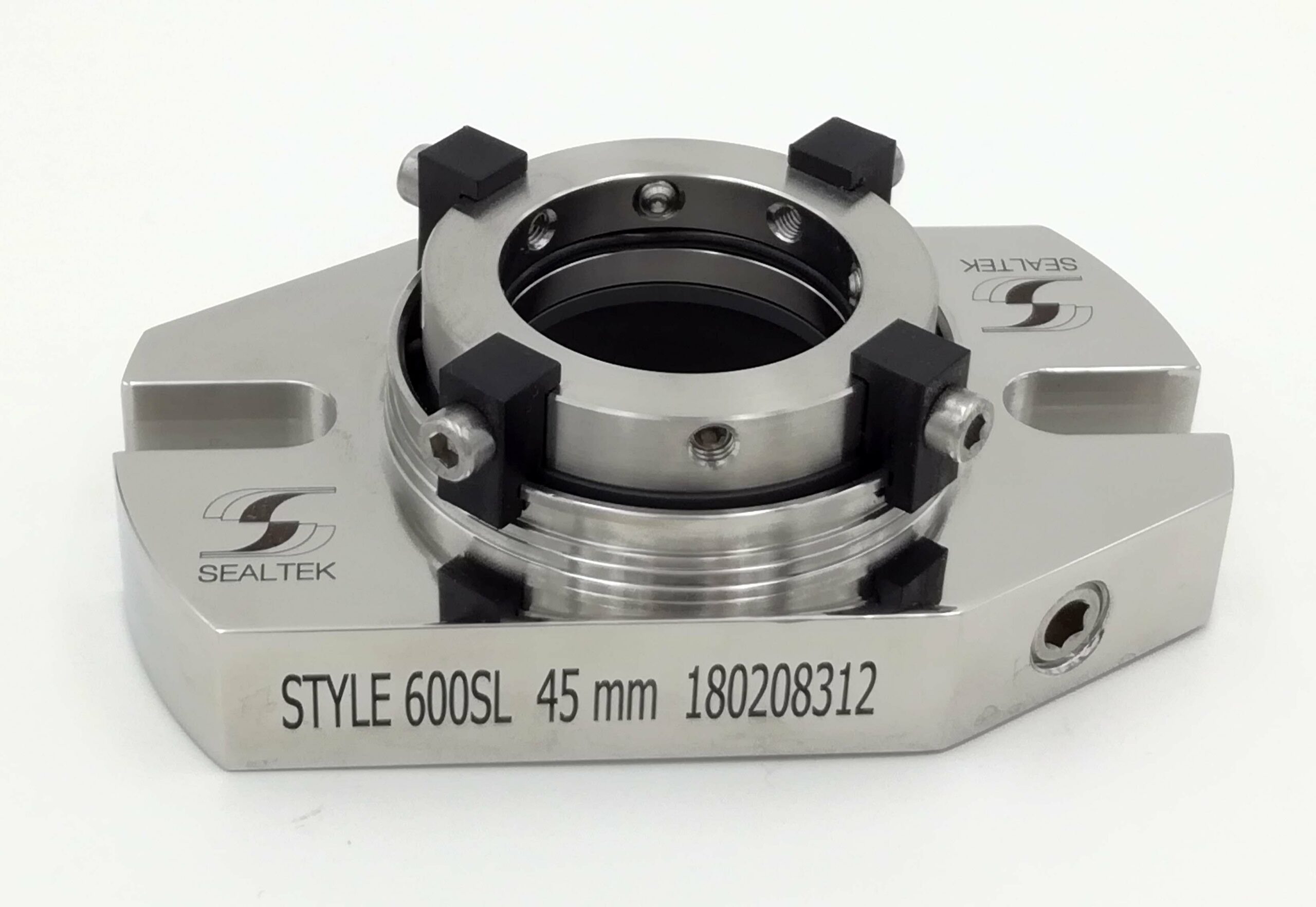

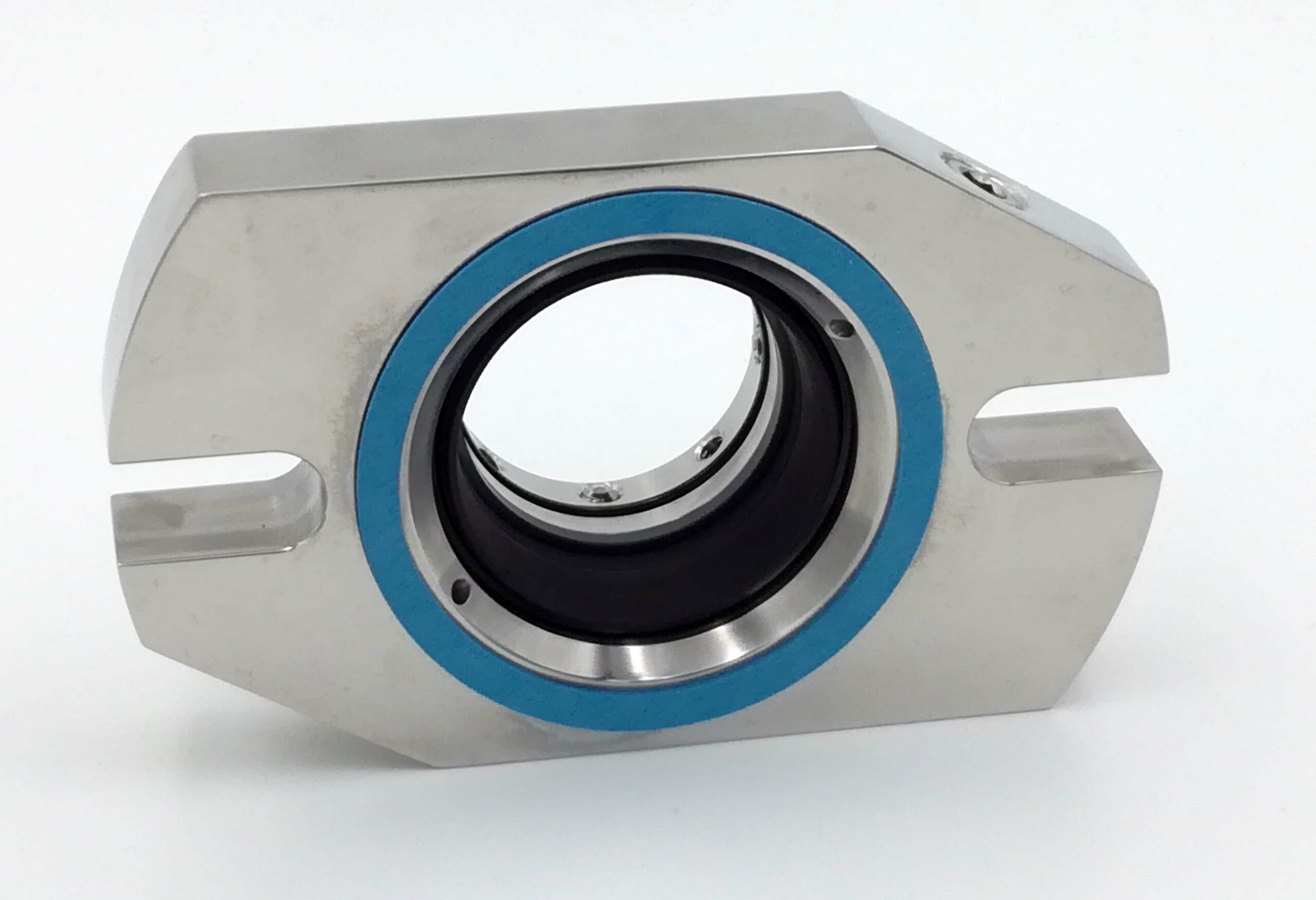

SEALTEK Style 600 SL

This revolutionary seal design is the result of the most intensive engineering design study imaginable. The first real innovation in the sealing market for many years.

Until now all mechanical cartridge seals have been designed with an integral shaft sleeve.

This revolutionary sleeveless design allows for installation on pumps where it was previously considered impossible to install a cartridge mounted seal.

The sleeveless design also allows for greater radial run-out of the shaft.

The 600SL is the first cartridge mechanical seal to incorporate a conical stuffing box design, allowing it to greatly improve seal life in slurry and dirty fluid applications.

With no seal parts inside the stuffing box, slurry contamination cannot clog the seal greatly increasing seal life.

Metal parts Aisi 316 L DIN 1.4571*

Pressure Vacuum 700 mm Hg ÷ 3,5 MPa (13,5 ÷ 510 PSI)**

Elastomers FKM - EPDM - FFKM - FEPM - TTV

Temperature Up to elastomer limit. FKM: +205°C (+400°F)  E.P.R.: +150°C (+300°F)  FFKM: +315°C (+600°F)

Sliding faces A - B - Q1 - Q2 - U2

Speed 25 m/sec (4920 FPM) Depending on materials of sliding faces
