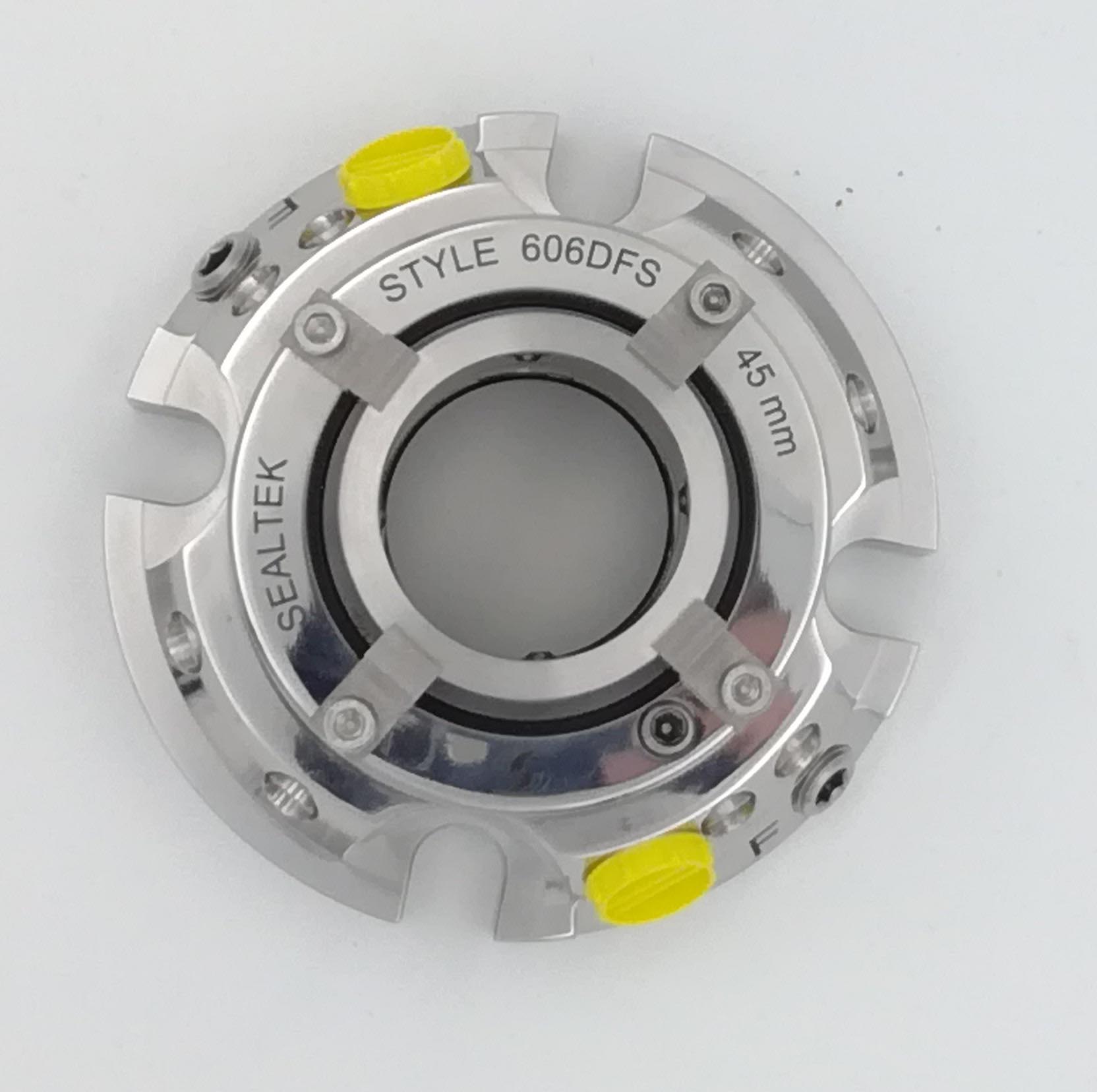

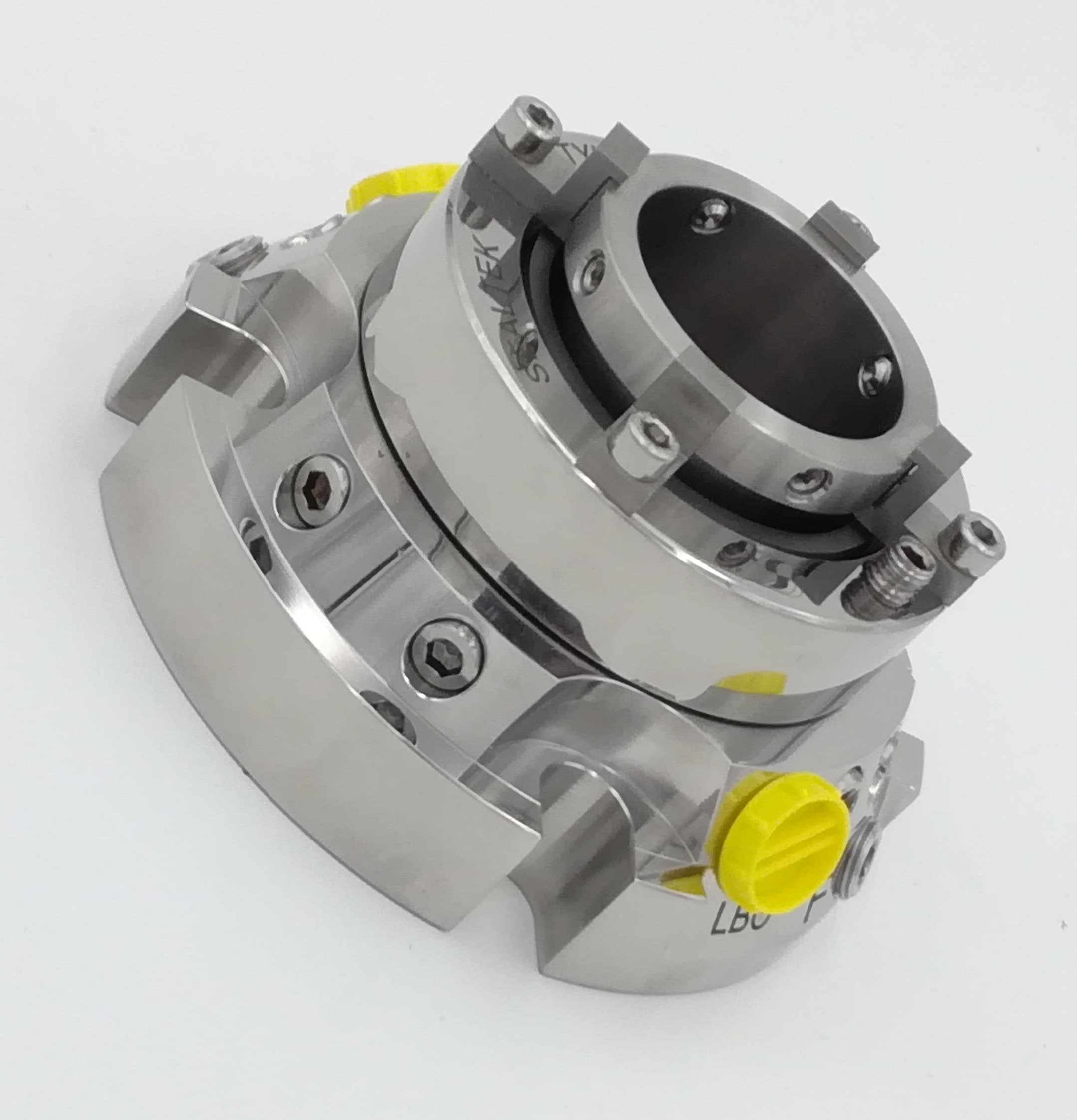

SEALTEK Style 606 DFS

New concept in double cartridge seals which makes the best use of the recent technology developed for the Style 600SL seals and widens its applications and performances.

The Style 606 DFS is equipped with its own conical extension of the stuffing boxin order to provide the longest possible MTBF available in the toughest applications.

The seal faces are designed by means of the most advanced FEA technology.

Double floating seal, with multiple springs out of the pumped fluid, extremely compact but able to withstand radial misalignment up to 4°.

Equipped with standard pumping ring, the Style 606 DFS seal can be installed in almost every application, even heavy duty pumps, reactors, and mixers.
