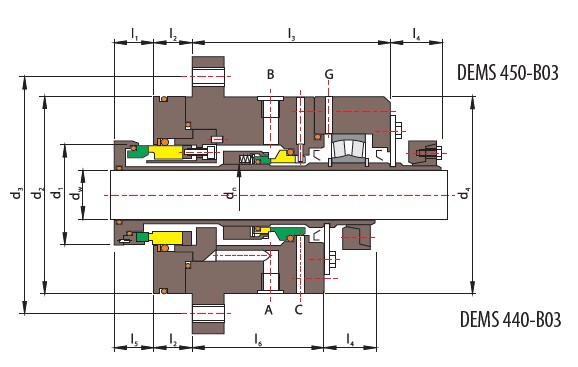

DEMS 440-B03 / 450-B03

Operating Limits
Pressure: ≤1.4MPa/≤2.3MPa
Speed: ≤10m/s/≤20m/s
Temperature: -30˚C~+200˚C/-20˚C~+300˚C

Rotary Ring(SiC/Carbon/TC)
Stationary Ring(SiC/Ceramic/TC)
Secondary Seal(VITON/Encapsulated Ring/KALREZ)
Other Parts (SUS304/SUS316/Titanium/Hastelloy-C)
